Quality crafted, cost efficient, and capable, Speedgrip Chuck has been in the business of manufacturing precision workholding products for over fifty years. Although we have often been copied, we have not been equaled in the quality, cost efficiency or capability that our mechanisms offer to customers. The backbone of our success has been our standard I.D. chucking components which have served as a trade mark to the machine tool industry since 1948. Today, more than ever, Speedgrip standards are assisting customers in being more productive in a very competitive world with the ability to address a broader range of applications and provide solid workholding solutions.
Speedgrip manufactures a full line of standard I.D. Collet Chucks and Locators for manual or drawbar actuation and Between Center Mandrels, with many items in stock. Various Single Taper, Double Taper and Reverse Taper collets in various sizes from .500˝ to 17˝ diameter are standard with special sizes and configurations available by quote. A broader range of applications provide solid workholding solutions.
| Series | MD Style Mandrels |
| Description | MD Style Mandrels Chucks |
| Flange diameter | 1.3375 |
| Sleeve Range Limits | 1.000-1.500 |
| Maximum Drawbar Force | 2,600 Lbs |
| A | 3.32945 |
| B | 5.937 |
| D | 0.763 |
| F | 2.672 |
| G | .375-28 |
| H | 3.128/3.123 |
| J | 0.687 |
| K | .250-20 x 1.50 |
| L | 1.343 |
| M | 0.44894 |
| P | 0.2 |
| R | 2.5 |
| S | 2 |
| T | 0.406 |
| U | 0.25555 |
| V | 0.968 |

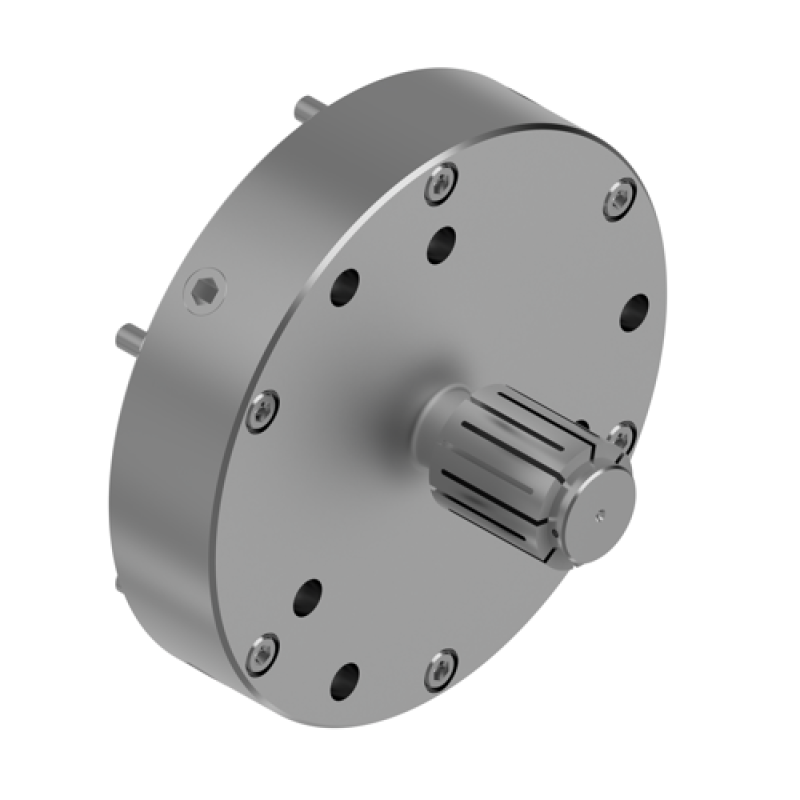

| Isometric View | Download |

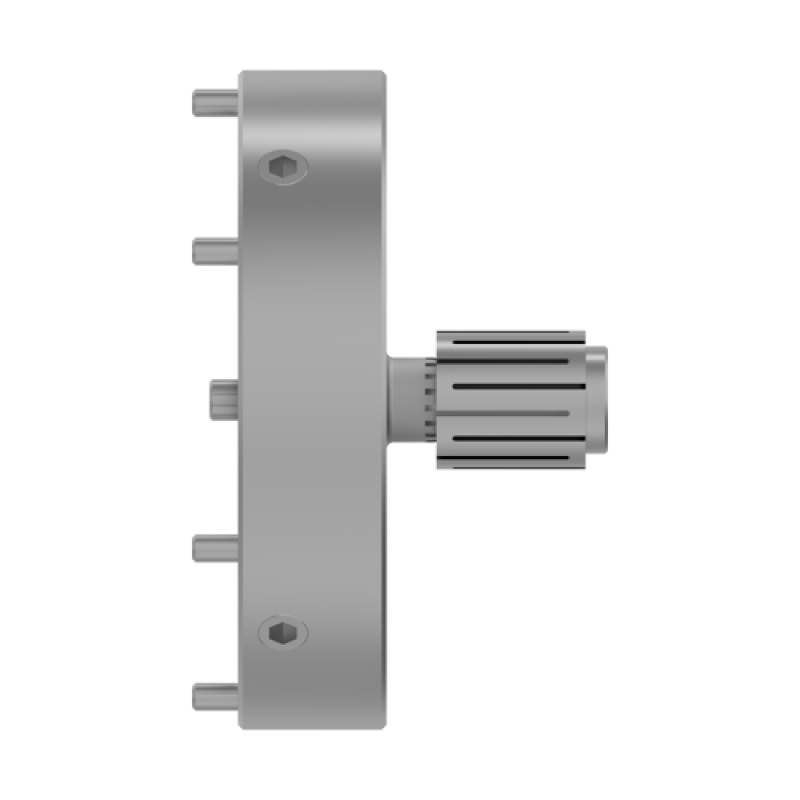

| Front View | Download |

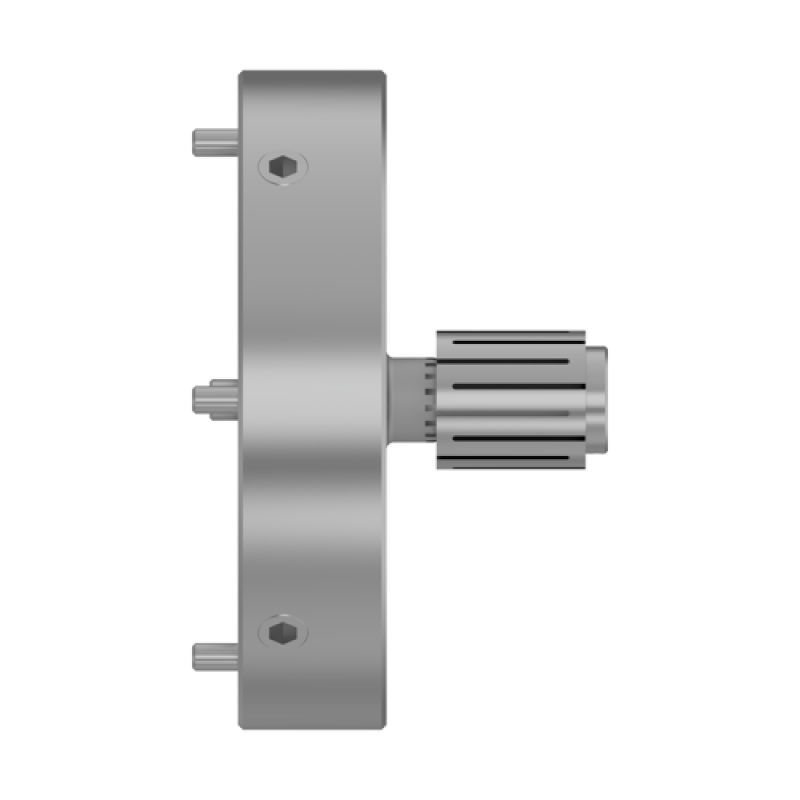

| Top View | Download |

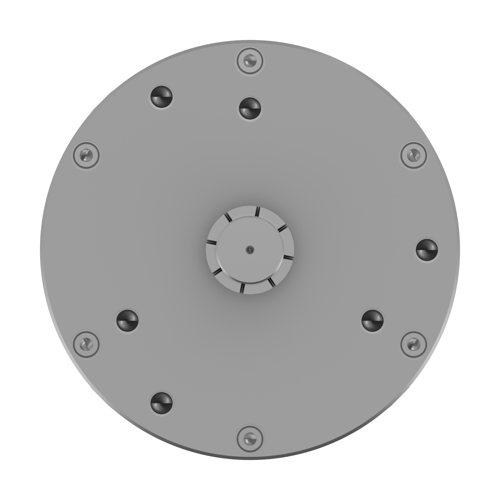

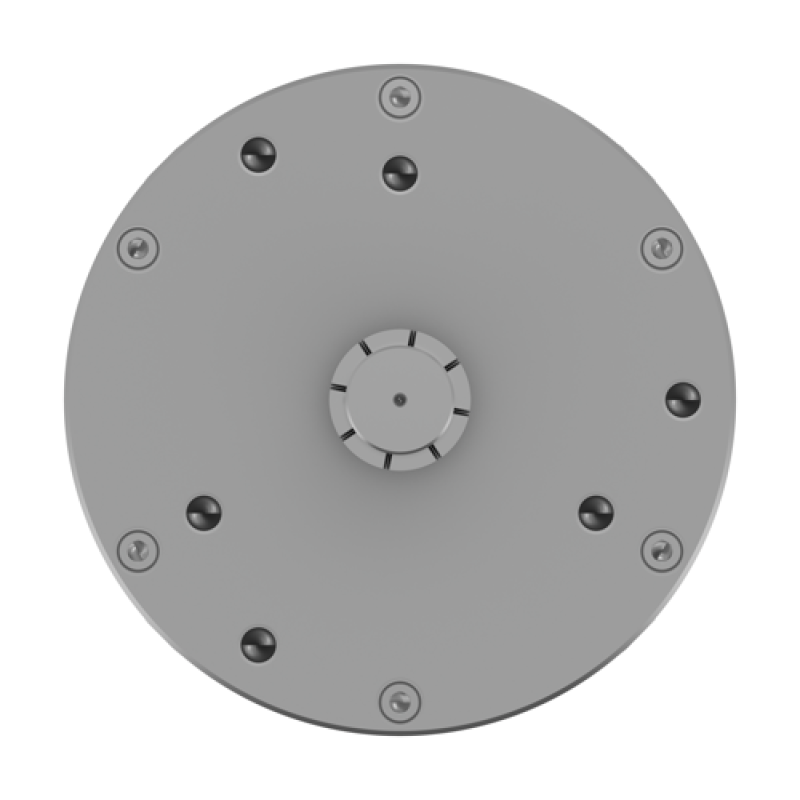

| Side View | Download |
